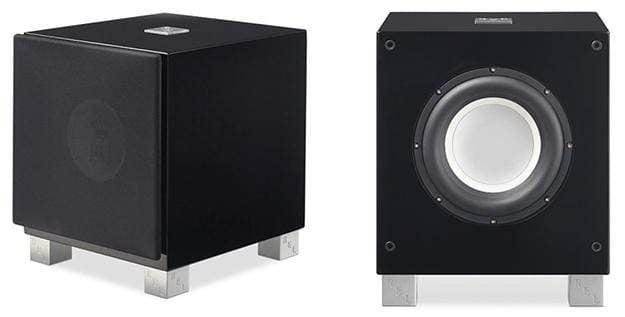

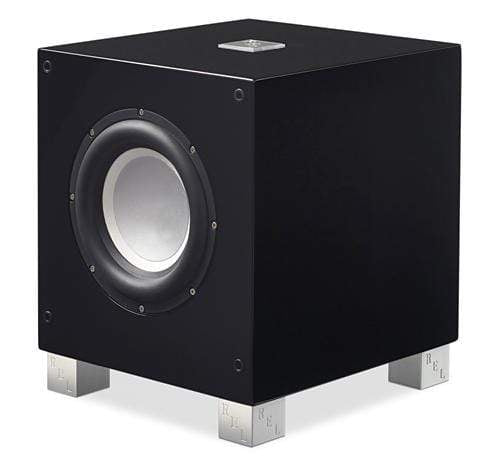

The new composite alloy/fibre engine in T/7i blends precisely the correct dimension of stiffening alloy with a fibre material chosen for its sonic neutrality and light weight. The combination is brilliant; exceeding the performance of competitors’ drivers that are many times more expensive. The forward-firing 8” active couples with a larger 10” down-firing passive, again with carefully chosen balances of alloy to fibre and the result is seamless, effortlessly deep bass that blends perfectly with the main speakers.
Specifications
- Type: Front-firing active driver, down-firing passive
- Active Driver Size & Material: 8 in., 200mm long-throw, FibreAlloy™ inverted aluminium dust cap, steel
chassis, white cone
- Passive Radiator Size & Material: 10 in., 250mm long-throw, inverted aluminium dust cap, steel
chassis, black cone
- Low Frequency Extention: -6dB at 30 Hz
- Input Connectors: High Level Neutrik Speakon, Low Level single RCA, LFE RCA
- Output Connectors: N/A
- Power Output: 200 Watts (RMS)
- Amplifier Type: Class A/B
- Wireless Capability: Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip
Protection System
- Fully Electronic Set Safe: Yes
- D.C. Fault: Yes
- Output Short: Yes
- Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
- Fuses: 2 Amp semi delay 230 volts operation, 4 Amp semi delay 115 volts operation
Dimensions
- W x H x D: 12 x 14.3 x 15 in. (305 x 362 x 382 mm)
- Net Weight: 36 lbs. (16.3 kg)
- Finish: High Gloss Black, High Gloss White, 5 coats
Supplied Accessories
- Mains Lead: Yes
- Neutrik Speakon: Yes (10 Meters Nominal)
- Interconnect: -
- Users Manual: Yes
