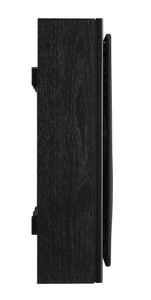

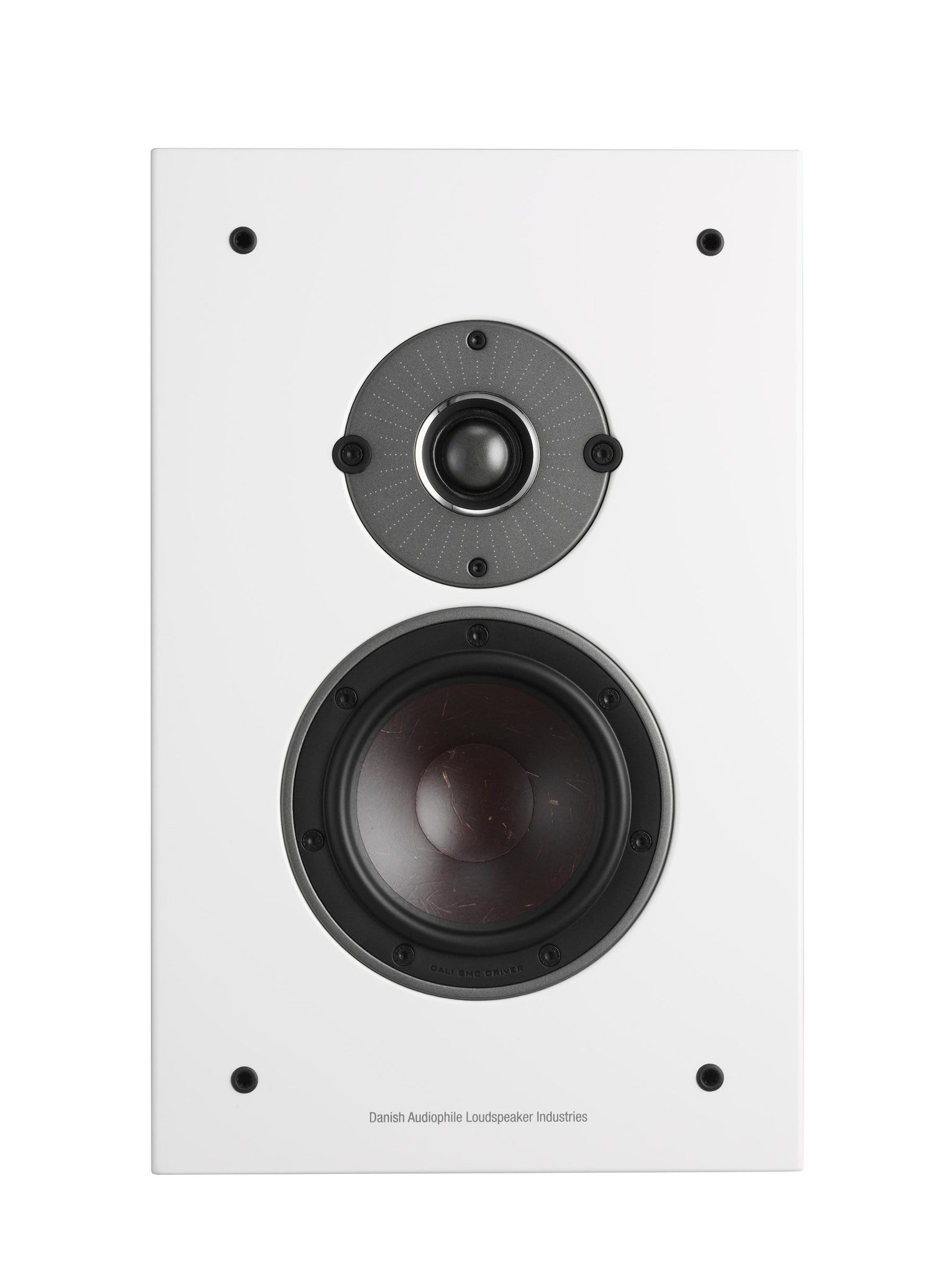

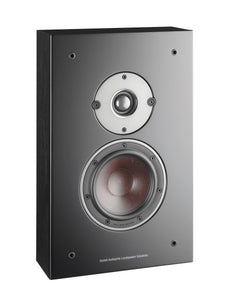

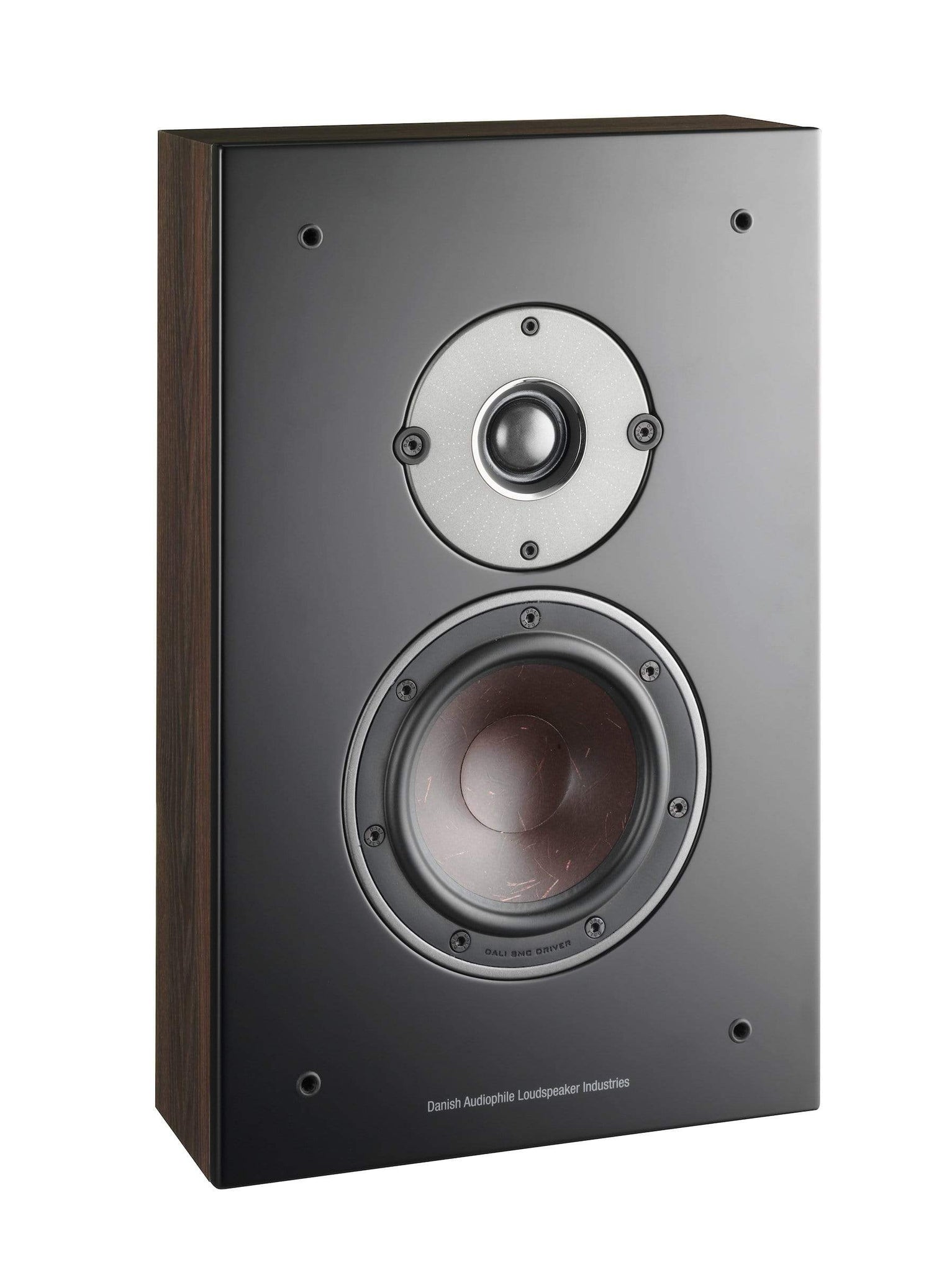

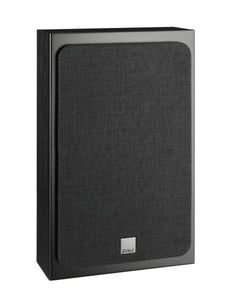

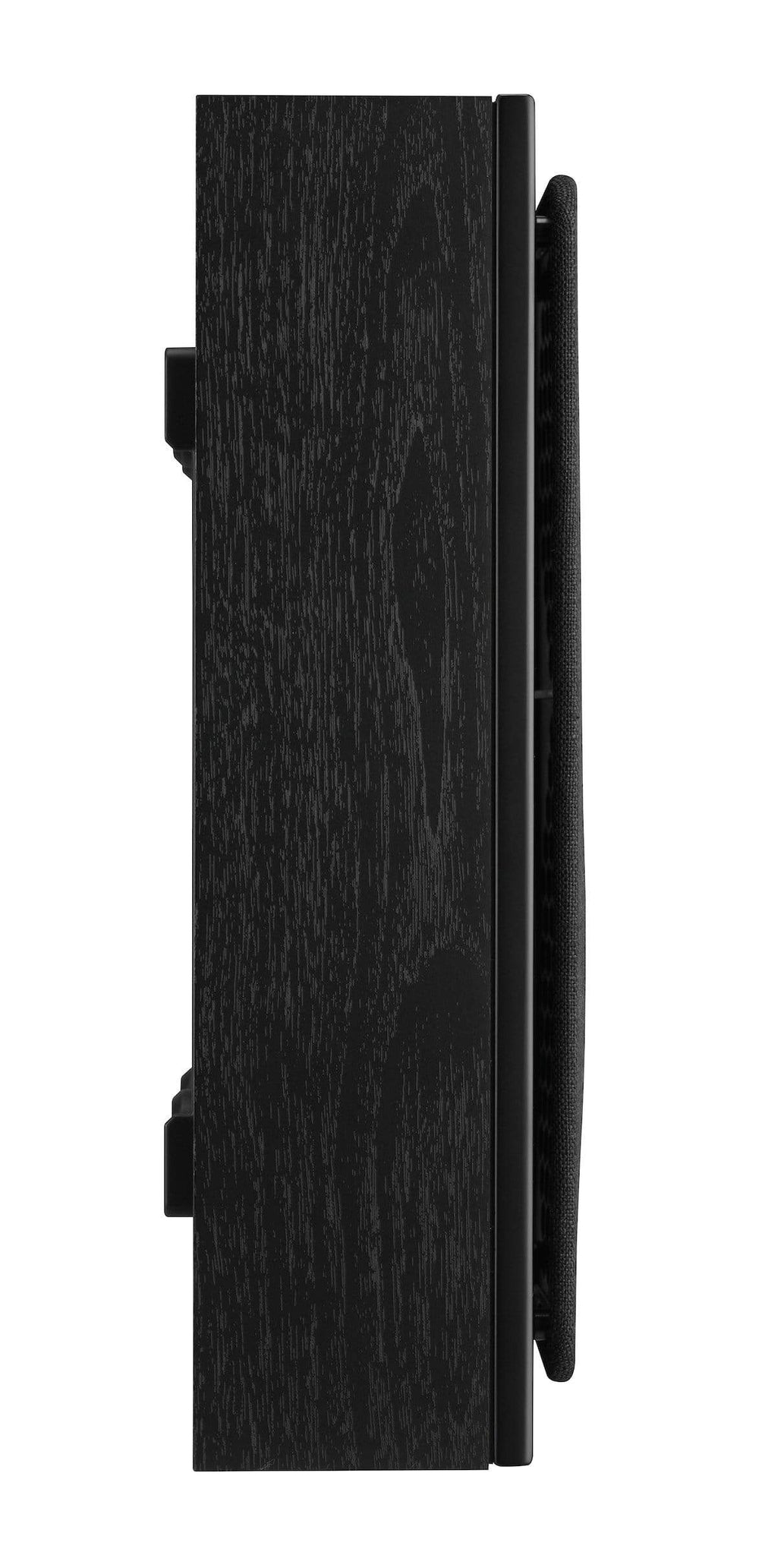

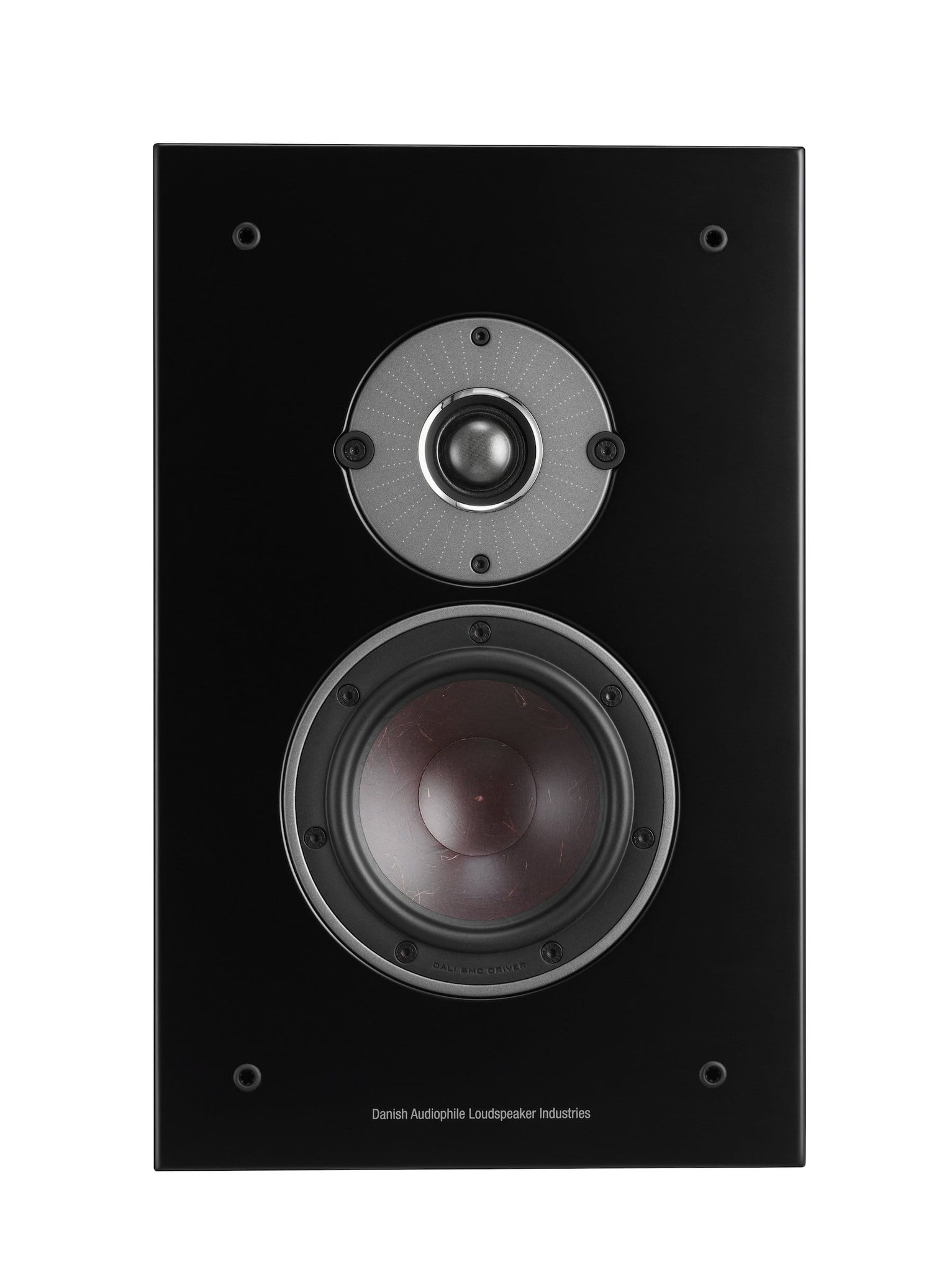

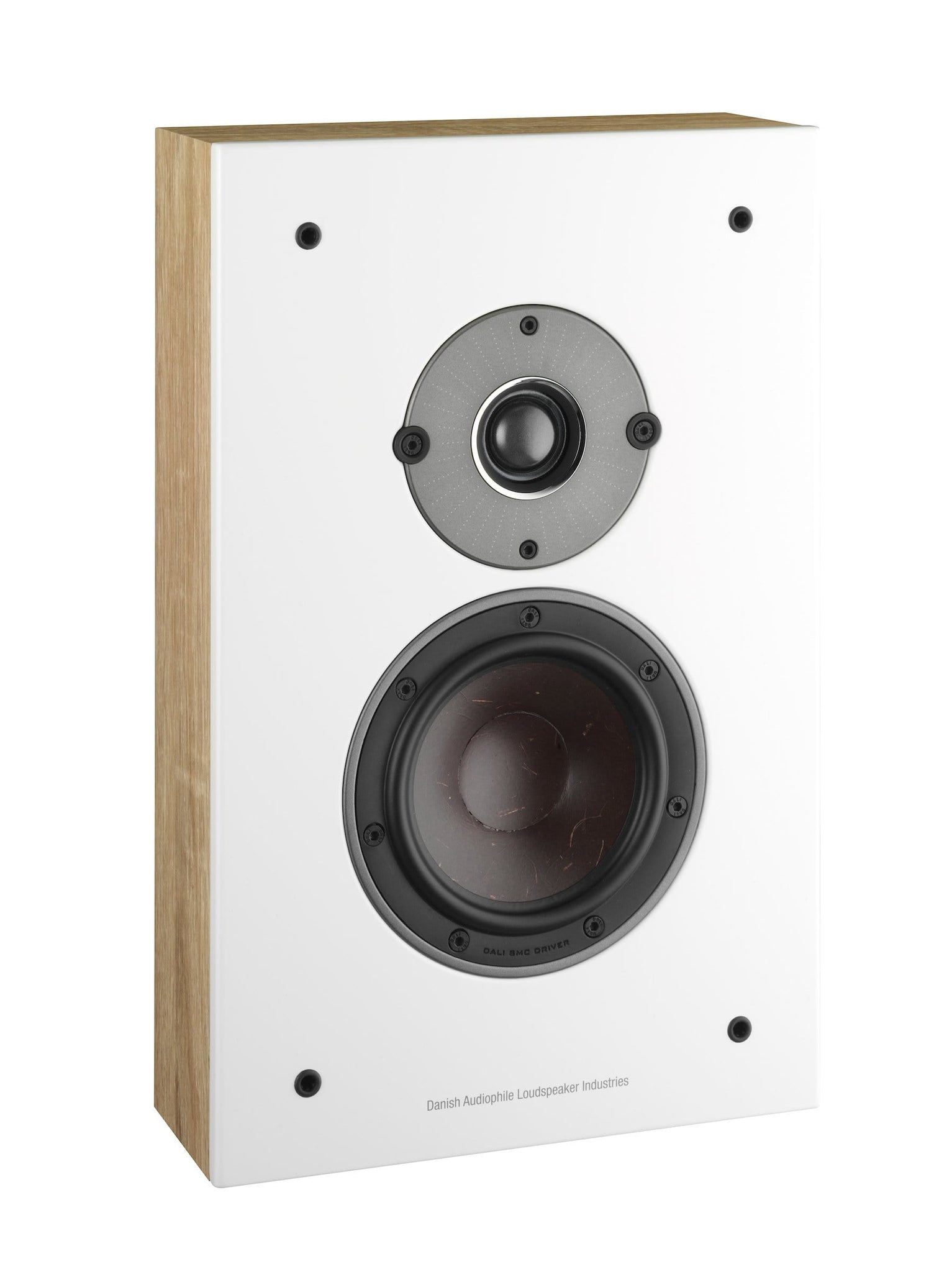

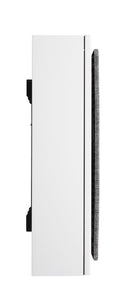

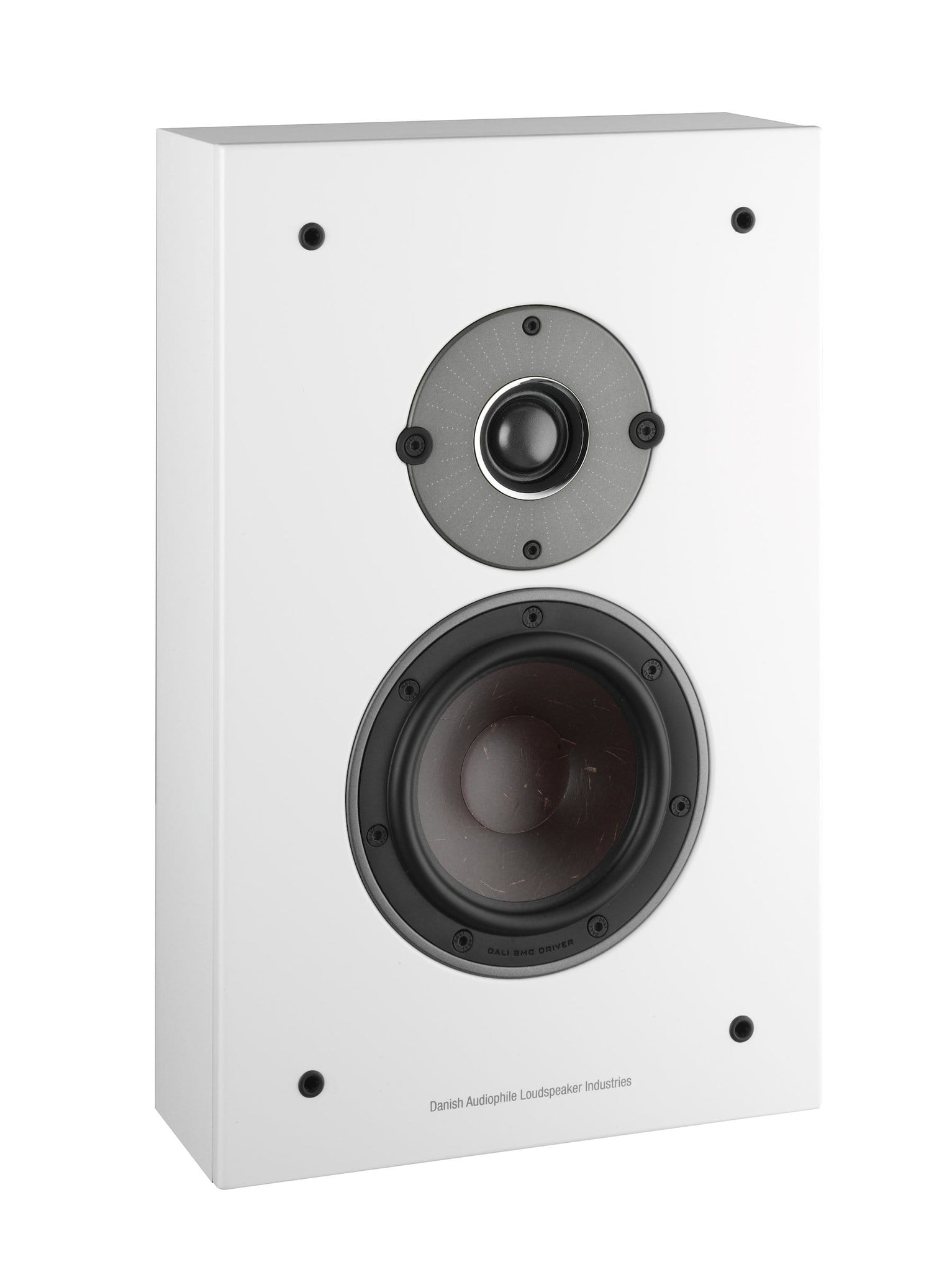

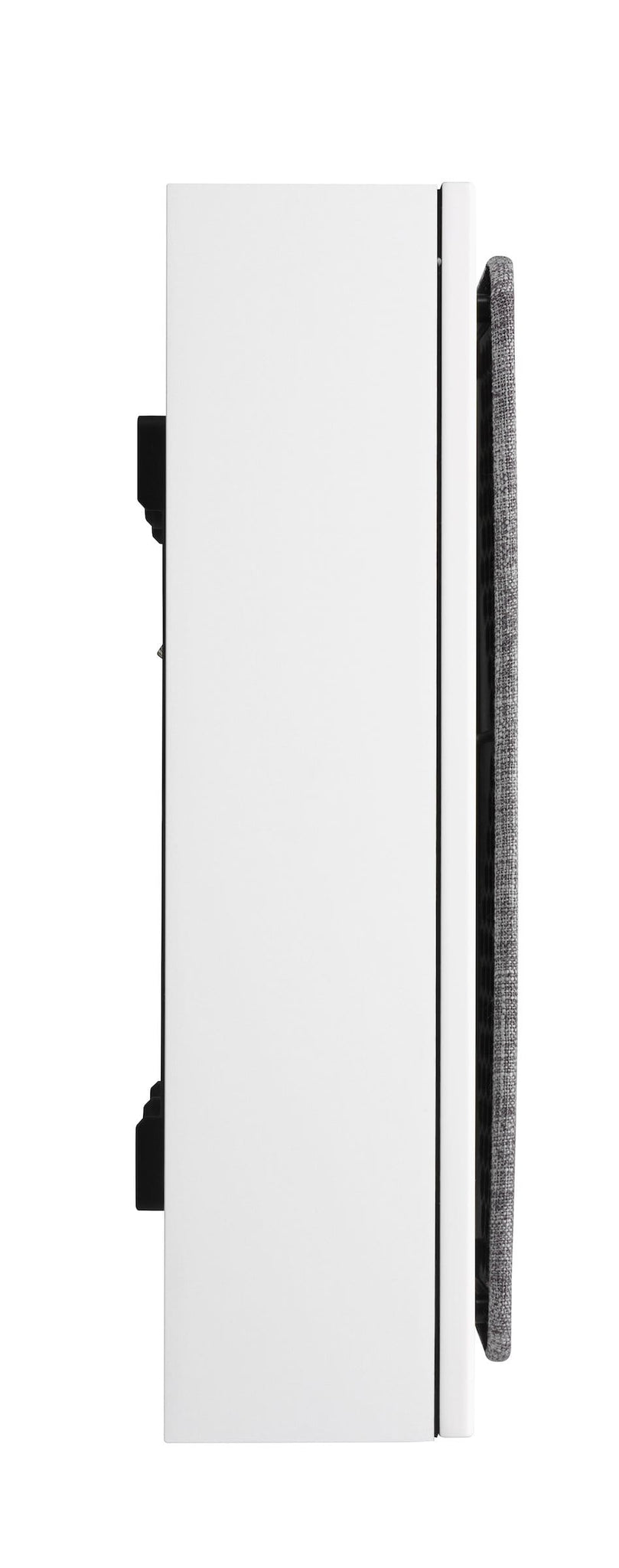

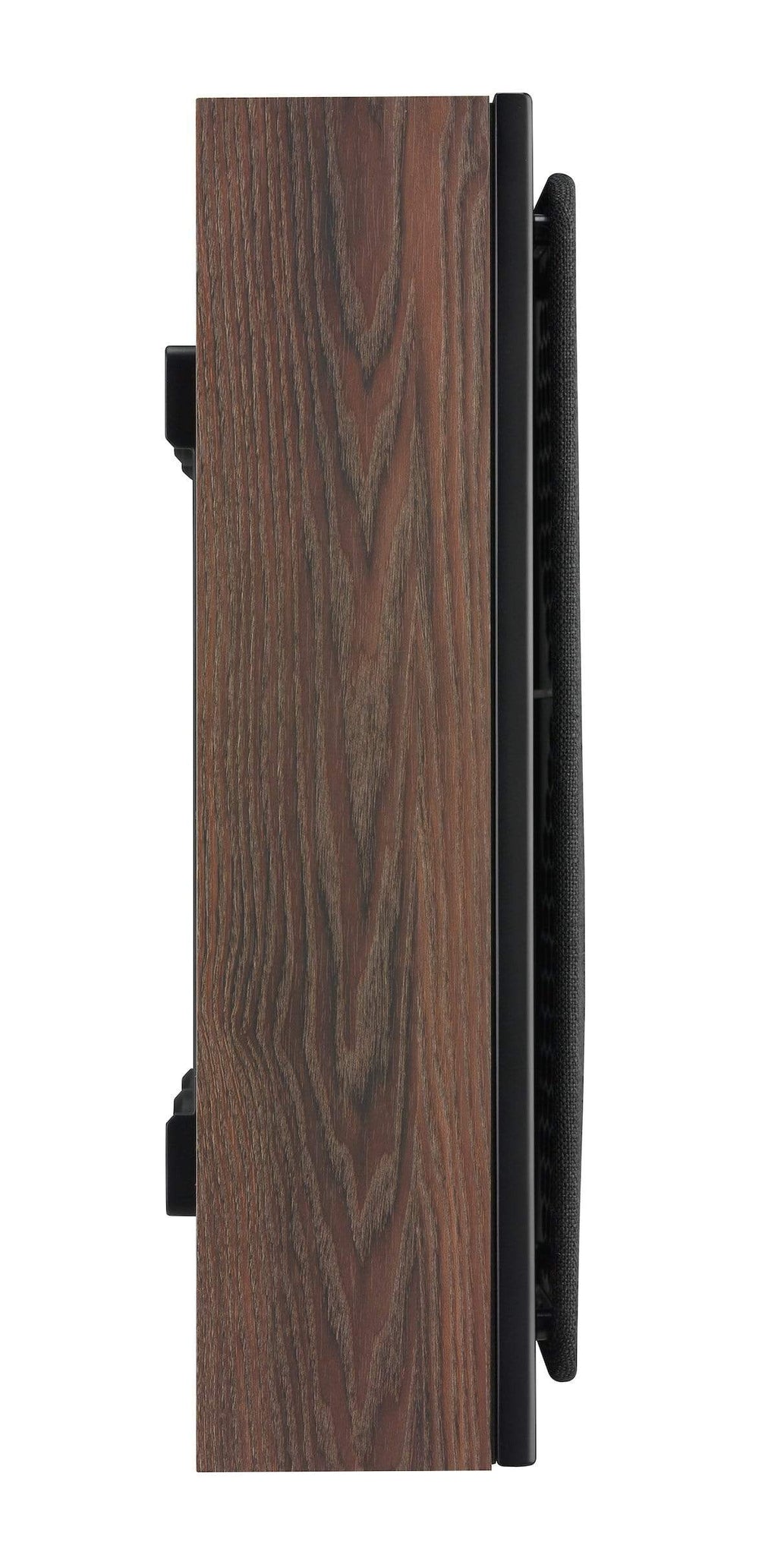

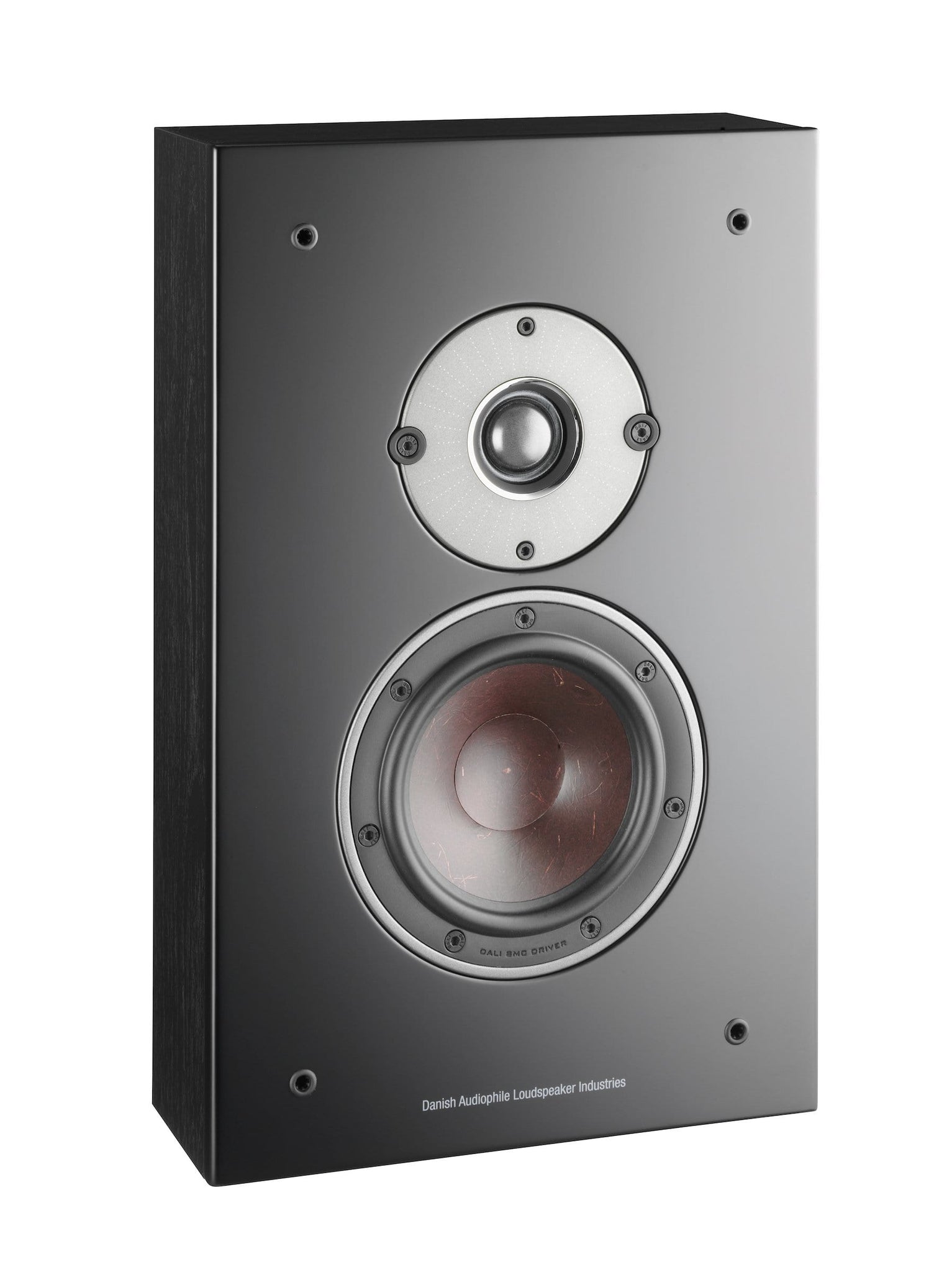

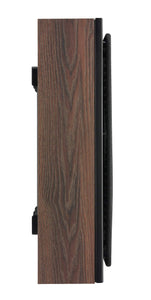

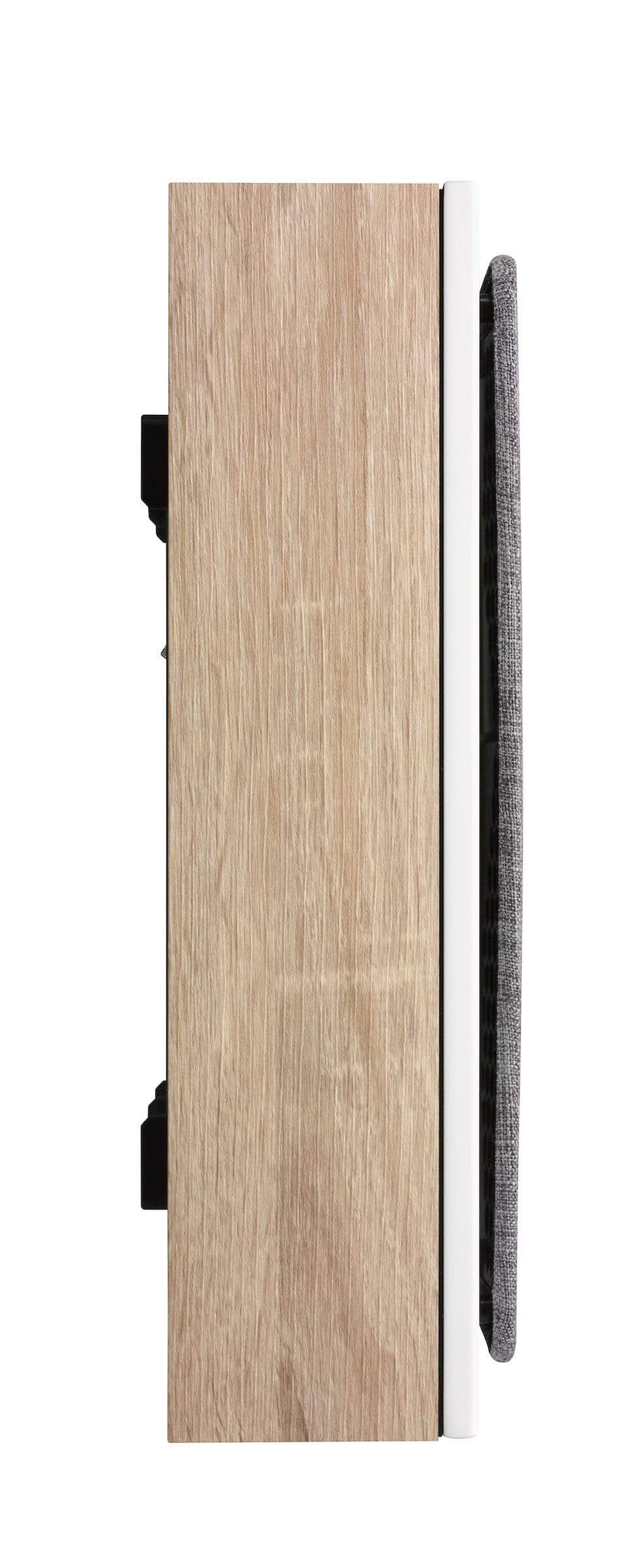

The DALI OBERON ON-WALL is a slim, discreet and surprisingly powerful on-wall speaker, which utilises DALI's unique on-wall bass port system. It houses an oversized 29 mm ultra-lightweight soft dome tweeter together with a 5.25" SMC based wood fibre woofer and the unique down-firing bass port system, which DALI has perfected. It combines technologies which make it possible to create a speaker that - despite its compact size - will render audio like a much larger model. For this reason, it's the perfect choice for both stereo and surround setups.
EASY TO POSITION
The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.

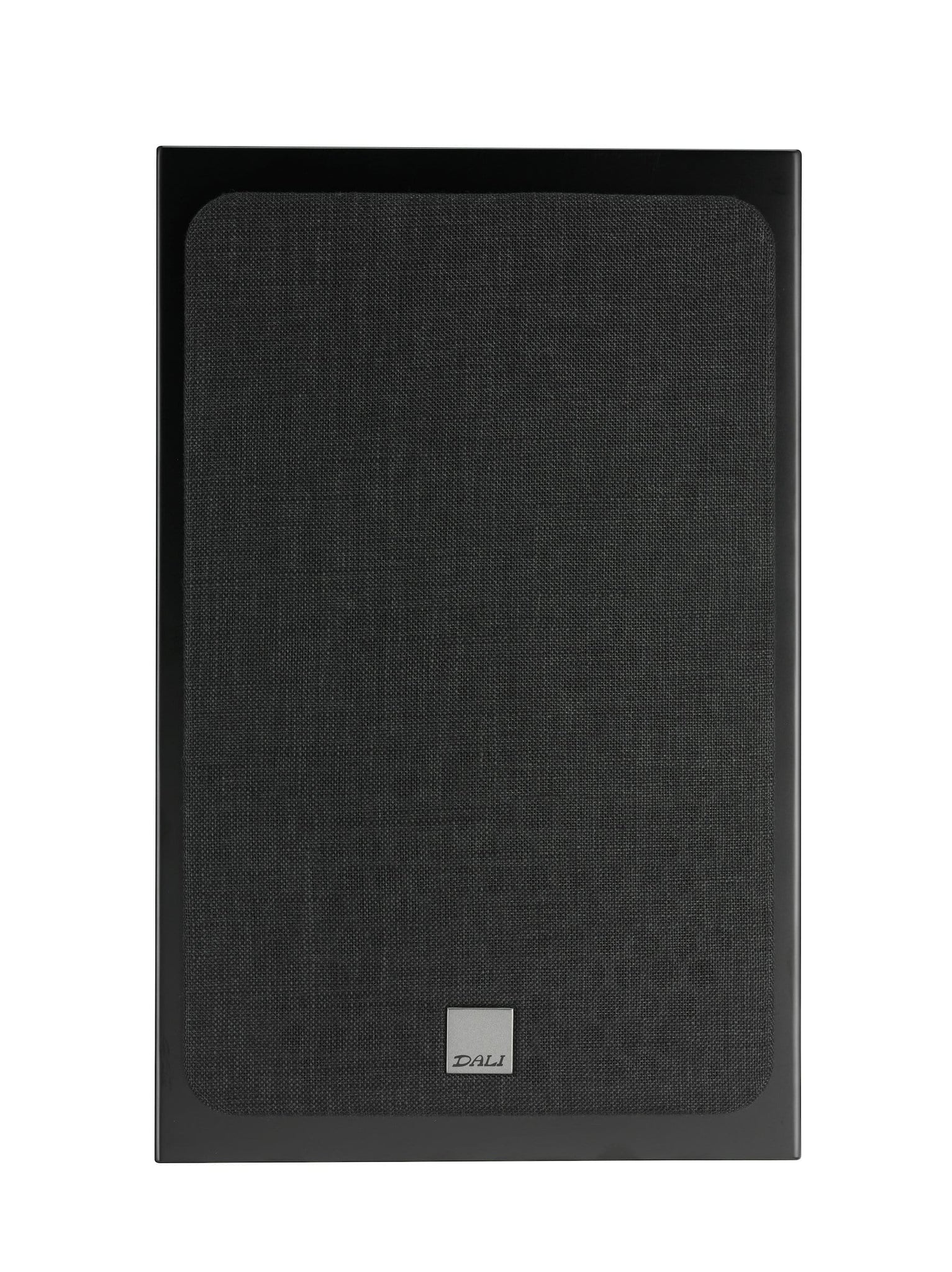

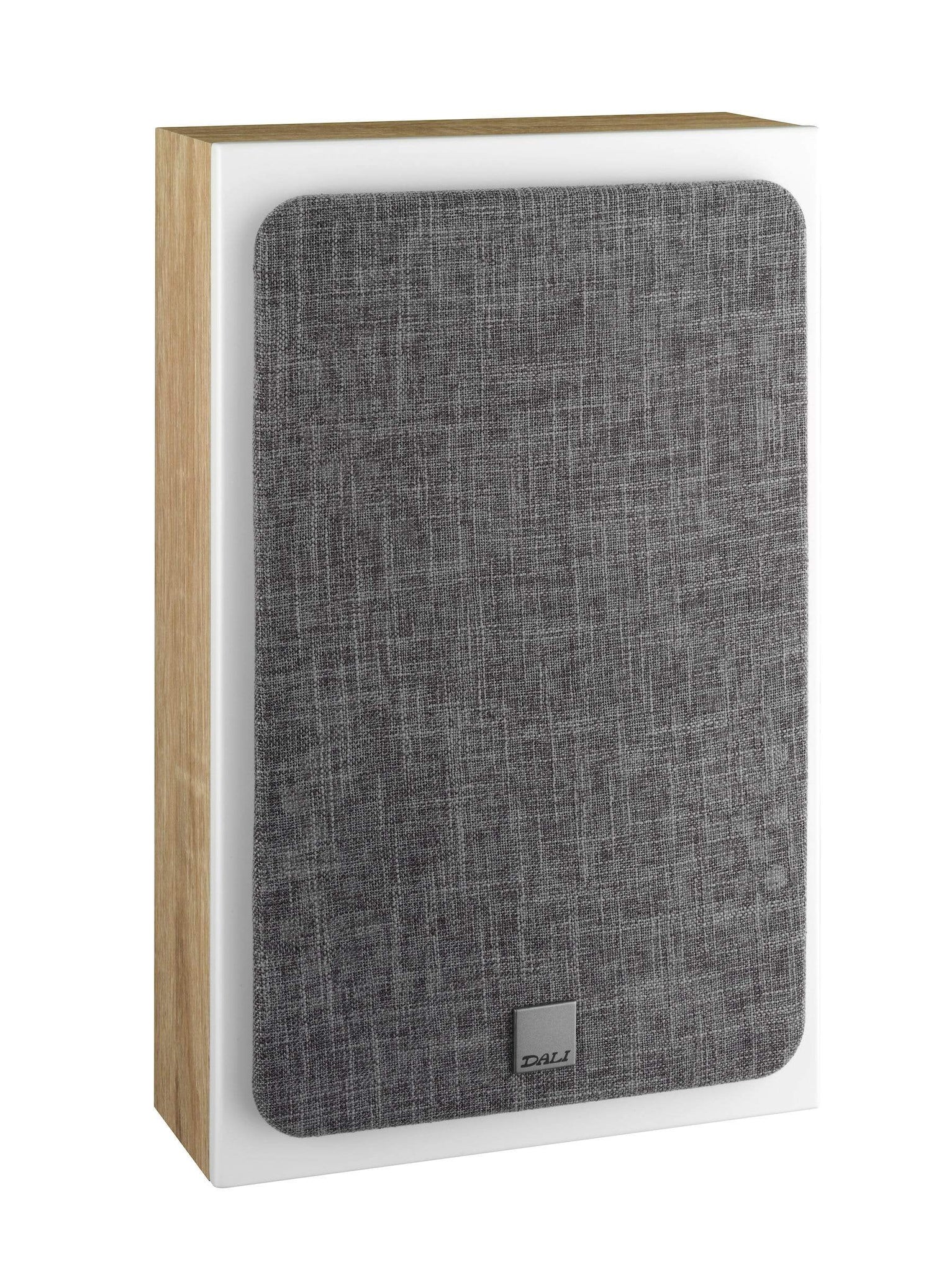

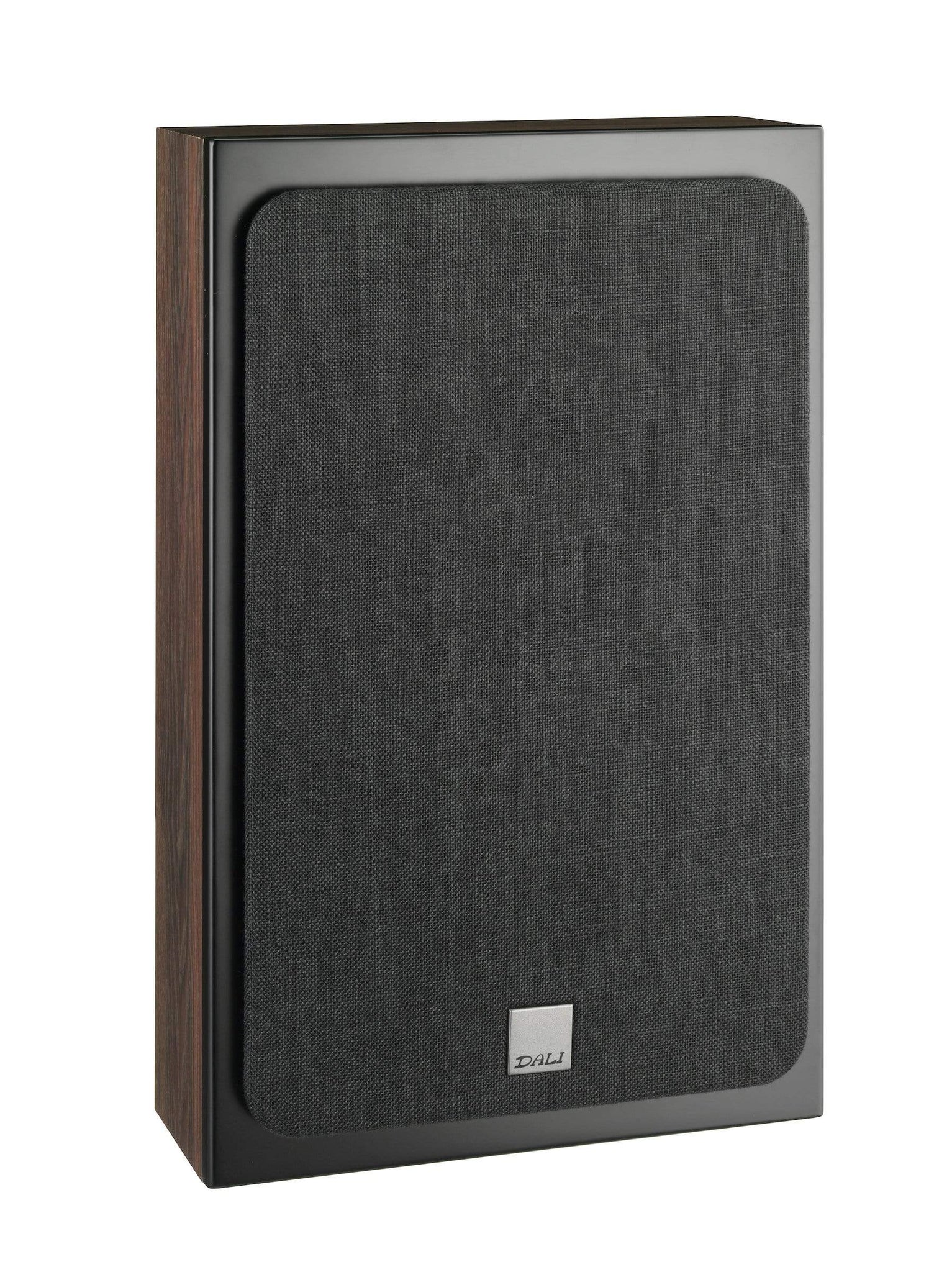

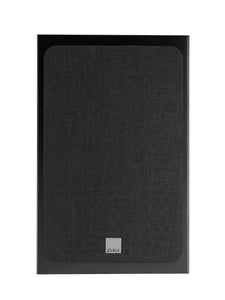

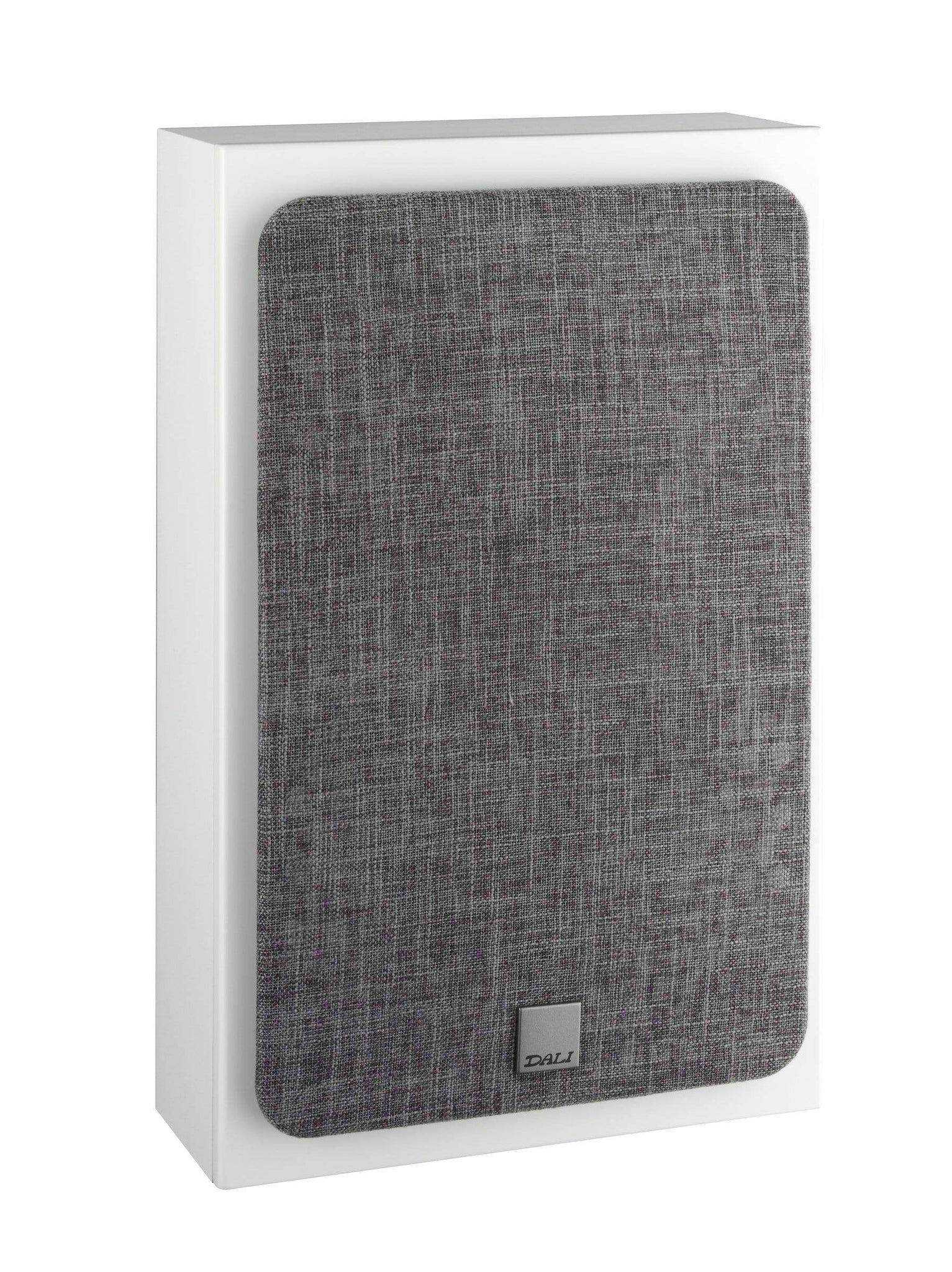

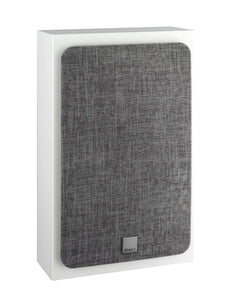

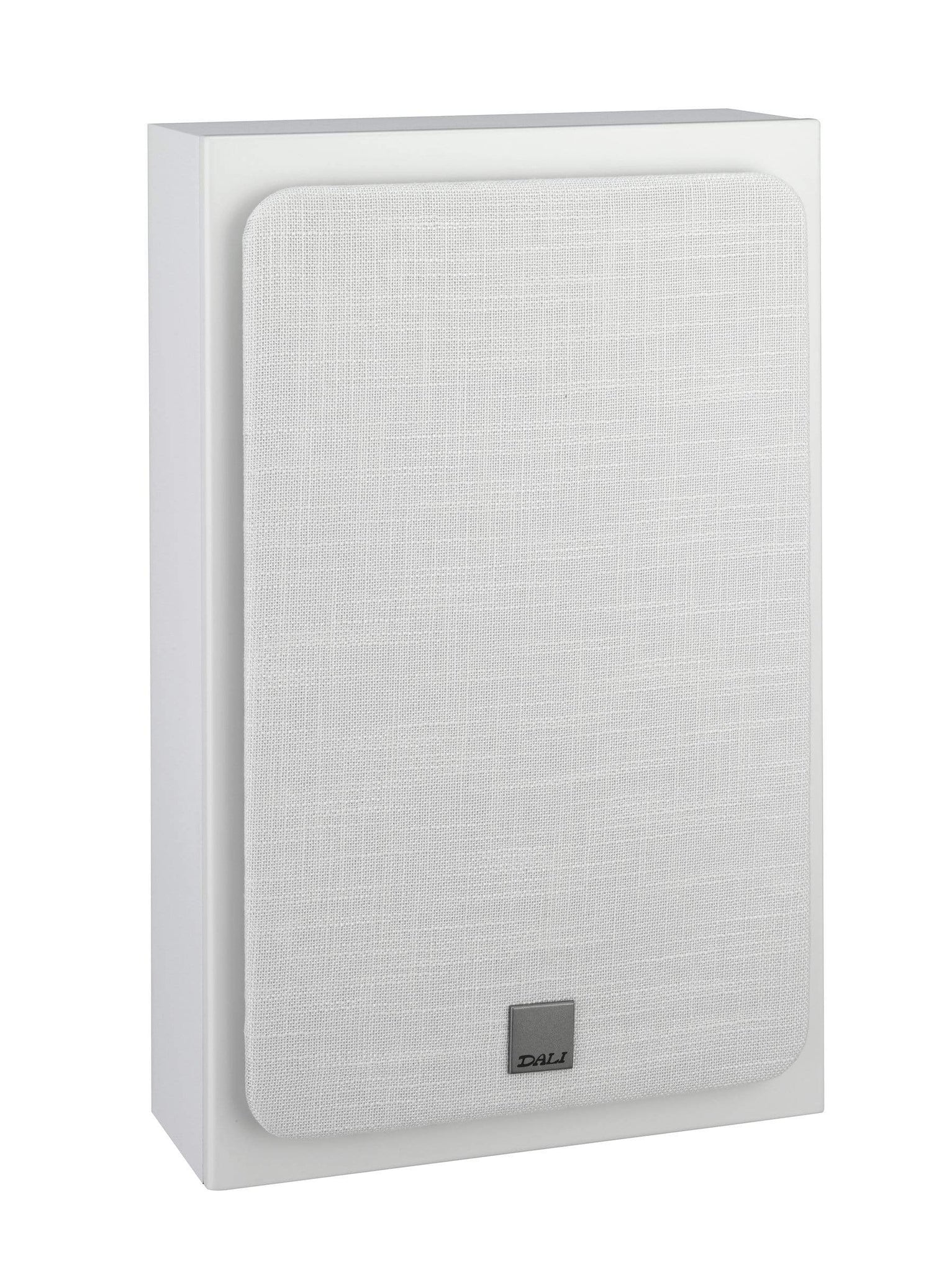

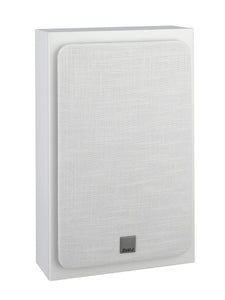

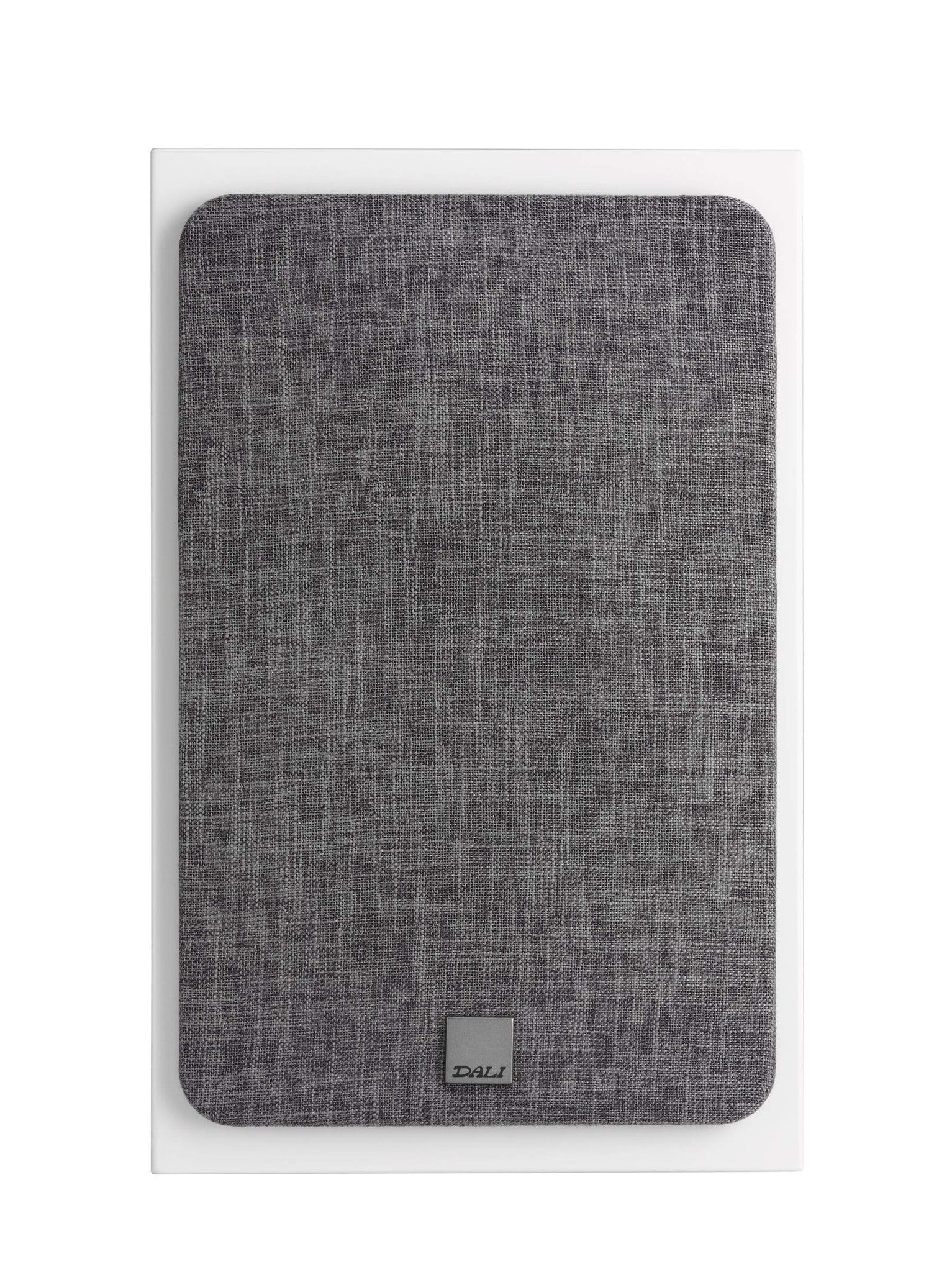

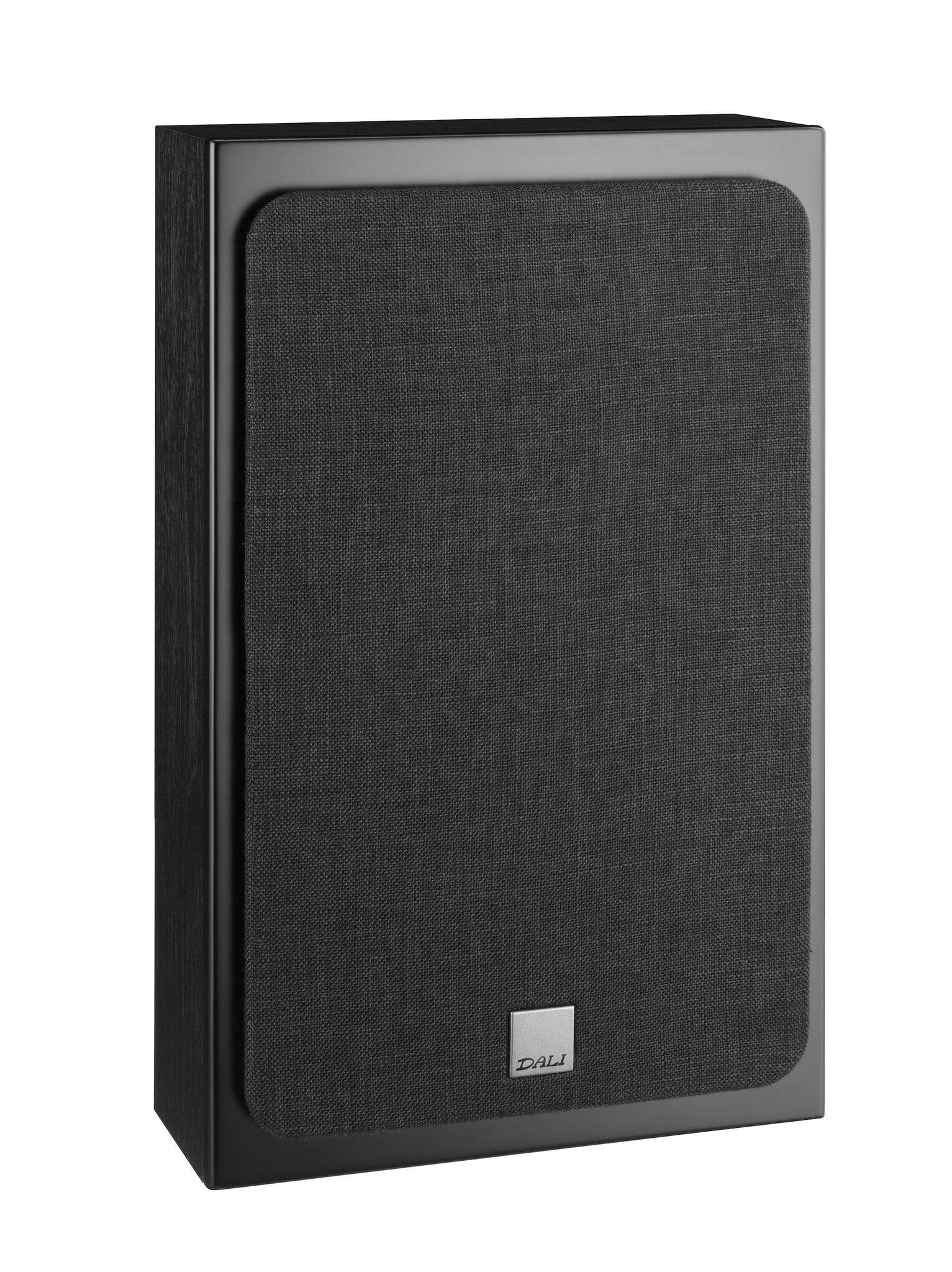

The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.
WOOD FIBRE CONE
The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.
The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.
DALI OBERON ON-WALL SPECS
|Frequency Range (+/-3 dB) [Hz]||55 - 26,000|
|Sensitivity (2,83 V/1 m) [dB]||86.5|
|Nominal Impedance [ohms]||6|
|Maximum SPL [dB]||107|
|Recommended Amplifier Power [W]||25 - 100|
|Crossover Frequency [Hz]||2,100|
|High frequency driver, Quantity||1 x 29 mm|
|High frequency driver, Diaphragm type||Soft Textile Dome
|Low frequency driver, Quantity||1 X 5.25"|
|Low frequency driver, Diaphragm type||Wood Fibre Cone
|Enclosure type||Bass Reflex
|Bass Reflex Tuning Frequency [Hz]||50|

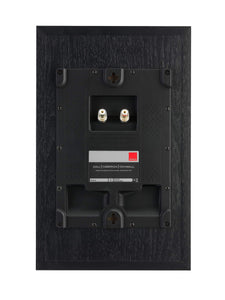

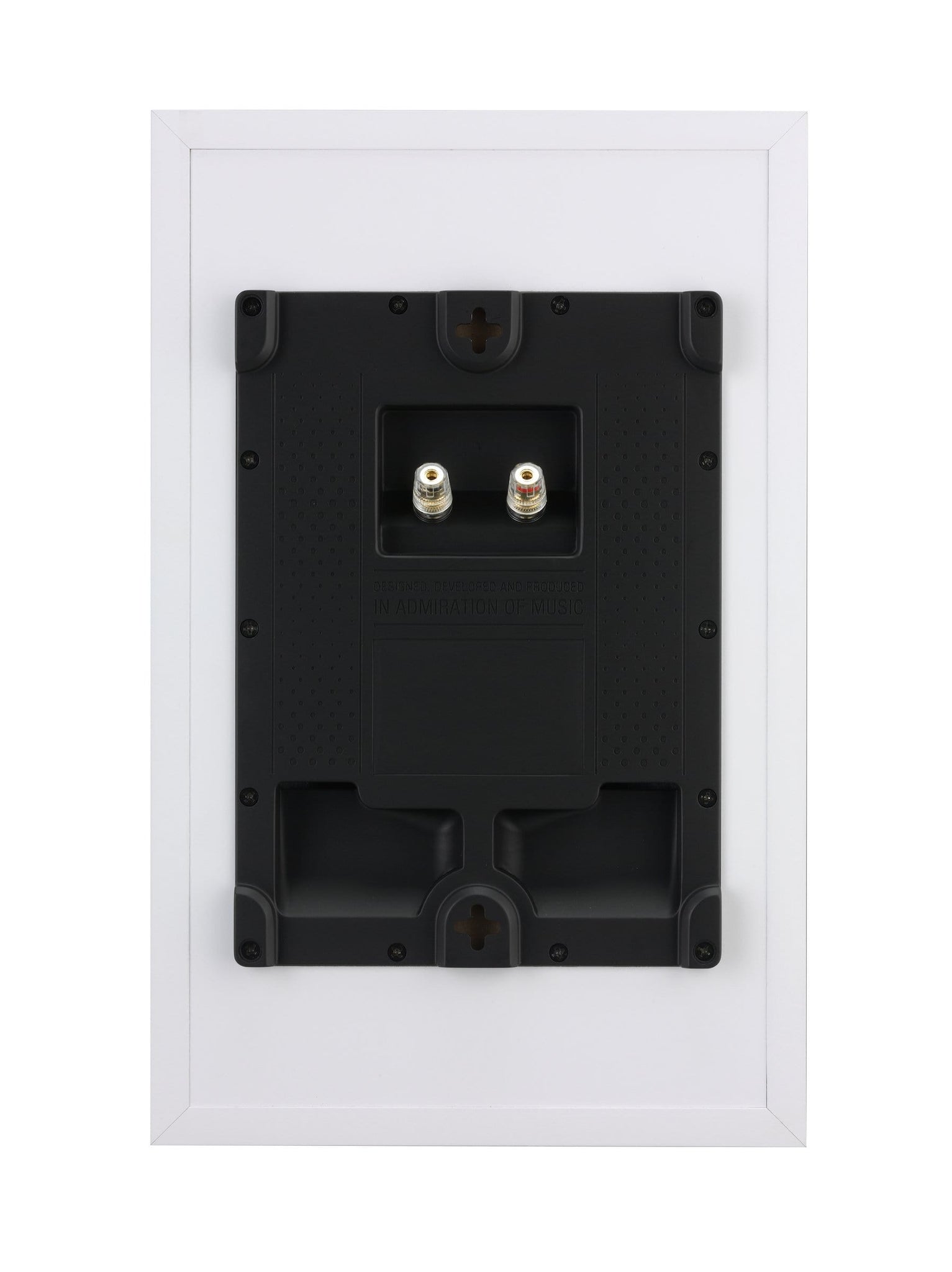

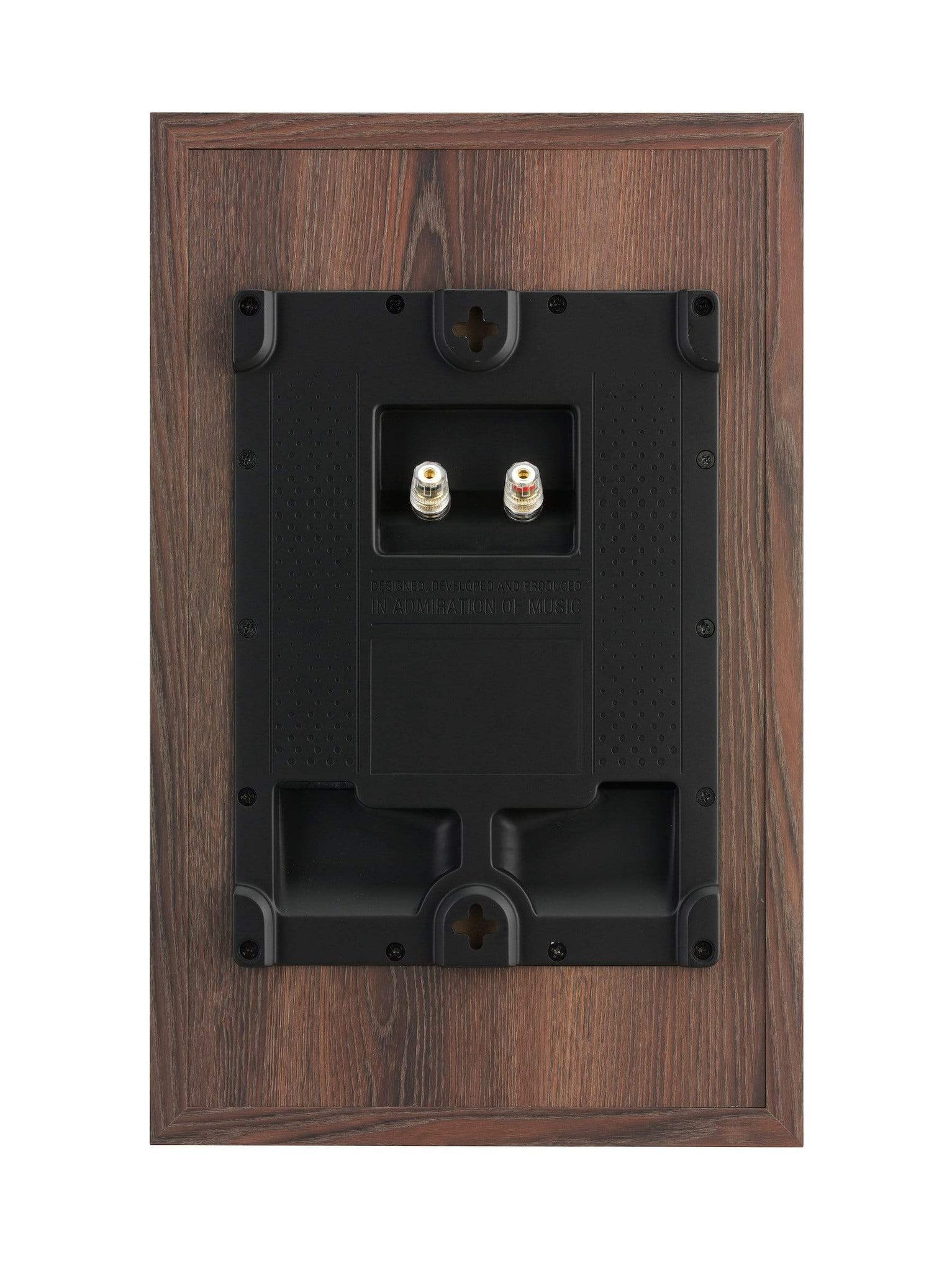

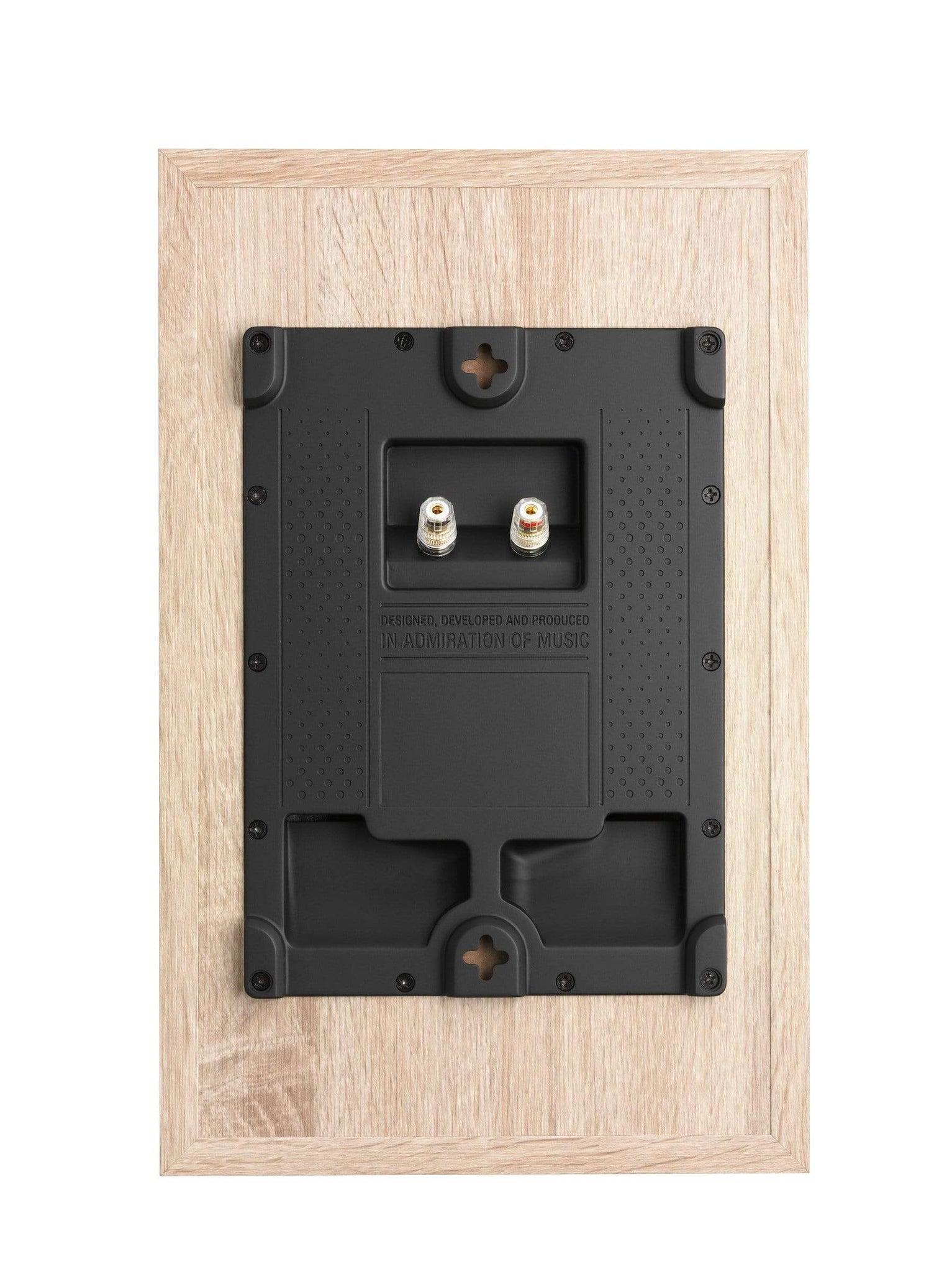

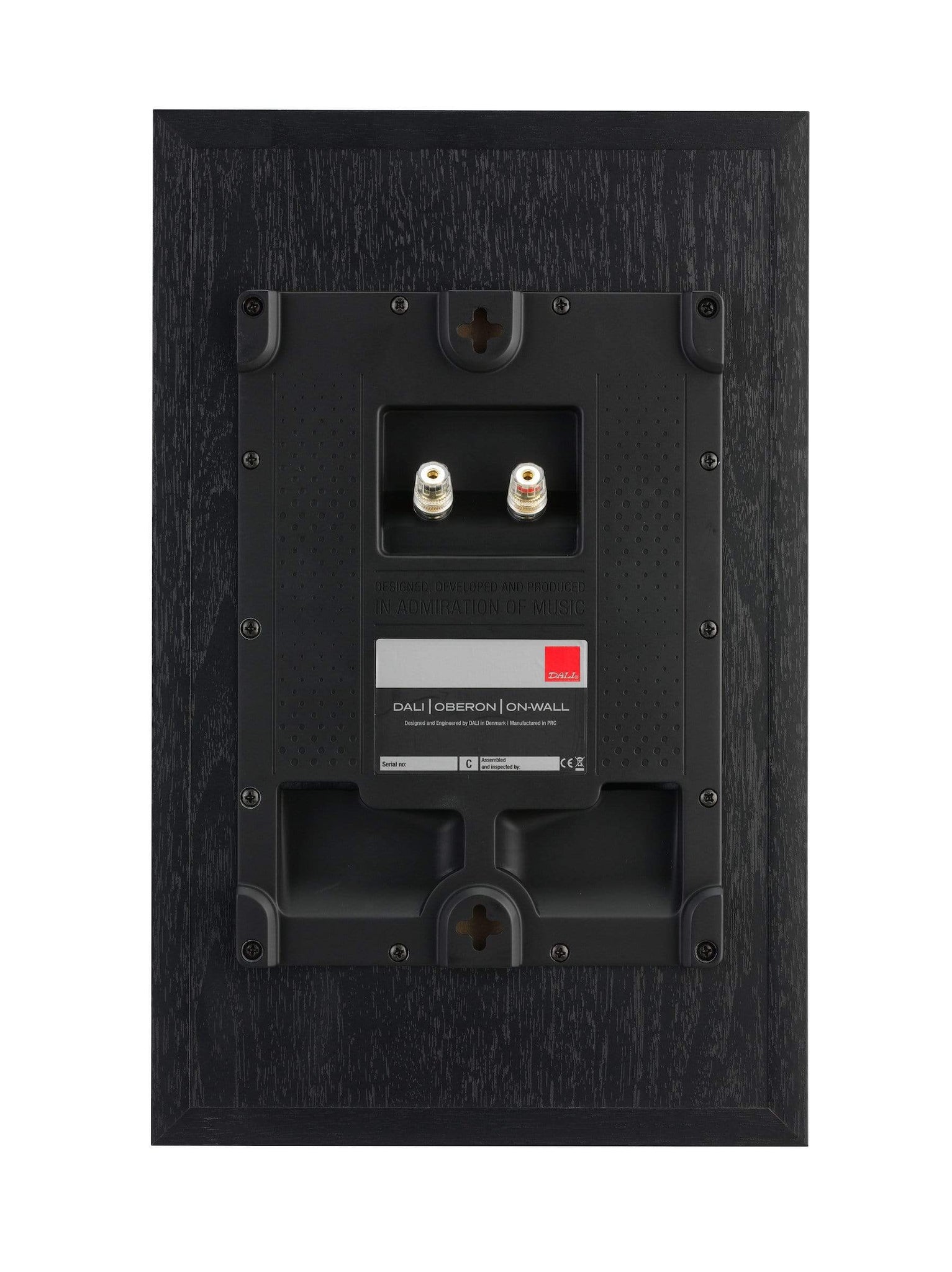

|Connection Input||Single Wire
|Recommended Distance From Wall [cm]||0 - 10|
|Dimensions With Base (HxWxD) [mm]||385 x 245 x 120|
