- New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
- 125mm ATC mid-bass unit with integral soft dome.
- In-house, hand-wound ribbon wire mid-bass voicecoil.
- Massive optimised mid-bass motor assembly.
- Flat impedance curve allowing easy load for amplifiers.

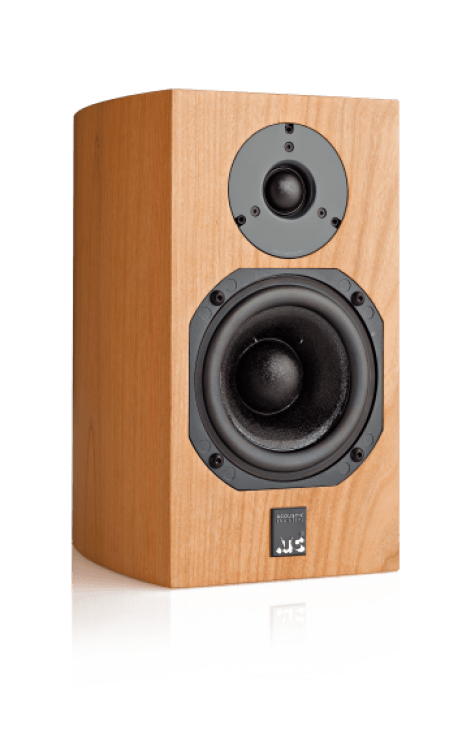

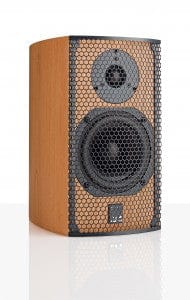

- Veneered Finish Options – Cherry, Black Ash.

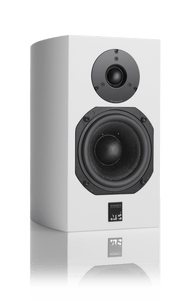

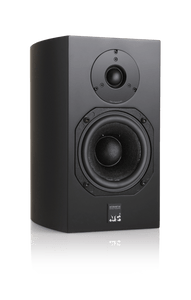

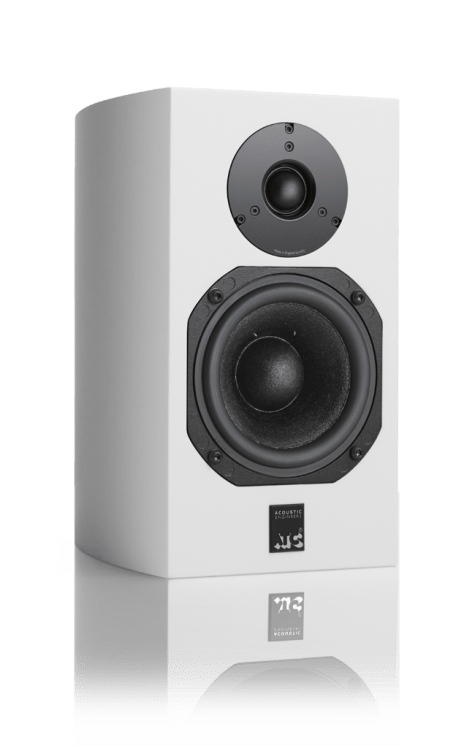

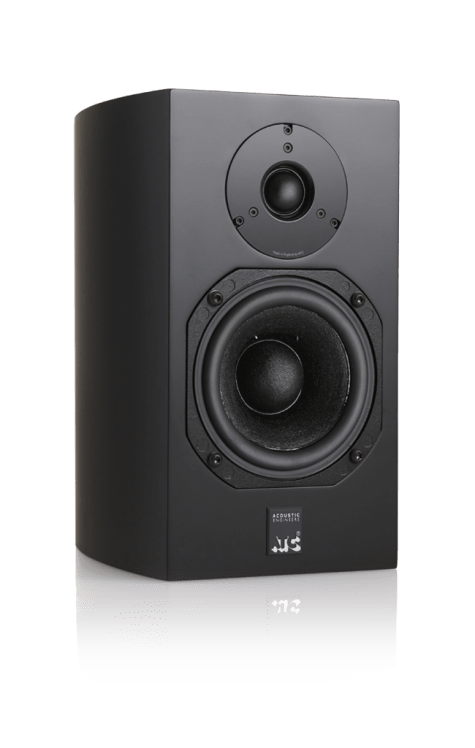

- Painted Finish Options – Satin Black, Satin White.
- 6 year warranty.
Drivers: HF ATC 25mm Neodymium Soft Dome, Mid/LF ATC 125mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 60Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 84dB @ 1W @ 1metre
Max SPL: 103dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 300 x 174 x 215mm / 11.81 x 6.85 x 8.46″ (grill adds 28mm depth)
