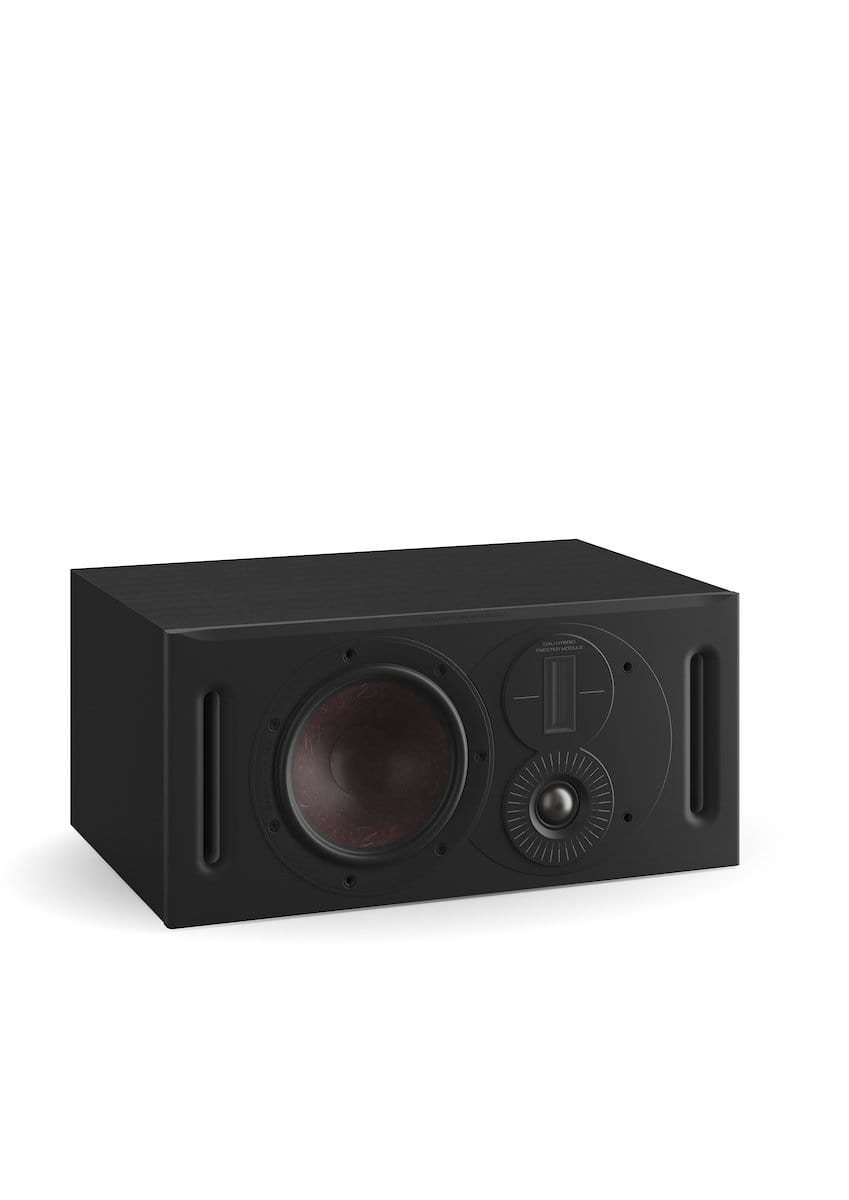

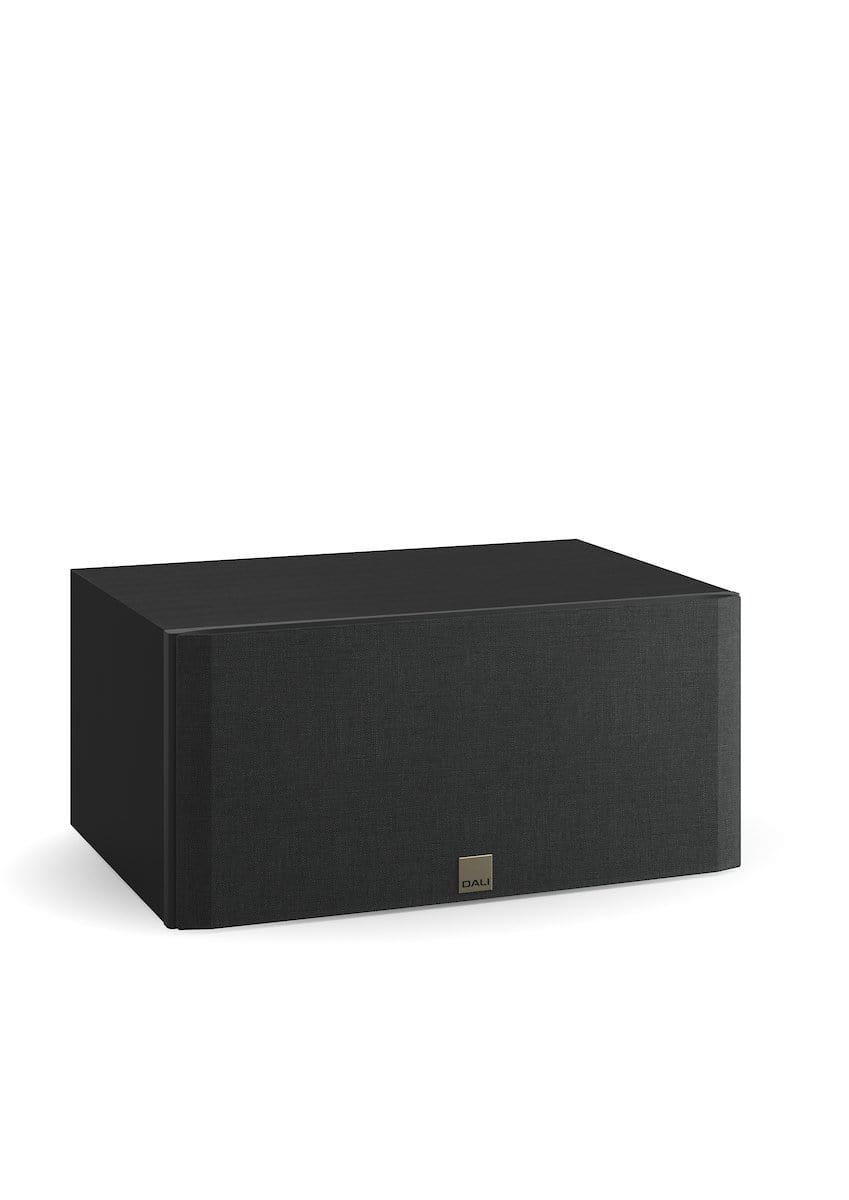

Completing both our OPTICON line-up and any serious home cinema sound system, the OPTICON VOKAL centre speaker presents the perfect harmony of power and control.
Arguably the most important element of cinema surround, the VOKAL is key when it comes to having movie dialogue and detail delivered clearly and crisply without getting lost amongst the effects and incidental music of movie soundtracks.
The mounting of the drivers and the final tests and approvals on each and every speaker is also handled directly at our own assembly lines in our Danish factory.
All elements of the DALI drivers are designed, produced and manufactured in-house in DALI.
DALI MDF CABINETS
Keeping the manufacturing of the OPTICON series firmly in the hands of DALI we utilize our large and efficient woodworking facility in Denmark to handle everything from cutting out the Medium Density Fibre board (MDF) cabinet to applying the vinyl.
In the OPTICON woofer magnet motor system the pole piece is purely constructed of SMC. SMC’s unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides.
DALI OPTICON VOKAL SPECS
|Frequency Range (+/-3 dB) [Hz]||47 - 32,000|
|Sensitivity (2,83 V/1 m) [dB]||89.5|
|Nominal Impedance [ohms]||4|
|Maximum SPL [dB]||109|
|Recommended Amplifier Power [W]||30 - 150|
|Crossover Frequency [Hz]||2,300 / 14,000|
|Crossover Principle||2 + ½-way|
|Hybrid tweeter module, Super high freq. driver, Quantity||1 x 17 x 45 mm|
|Hybrid tweeter module, Super high freq. driver, Diaphragm type||Ribbon
|Hybrid tweeter module, High frequency driver, Quantity||1 x 28 mm|
|Hybrid tweeter module, High frequency driver Diaphragm type||Soft Textile Dome
|Midrange driver, Quantity||1 x 6 1/2"|
|Midrange driver, Diaphragm type||Wood Fibre Cone
|Enclosure type||Bass Reflex
|Bass Reflex Tuning Frequency [Hz]||43.5|
|Connection Input||Single Wire
|Recommended Placement||Shelf or stand
Centre / Soundbar
|Recommended Distance From Wall [cm]||0 - 30|
|Dimensions With Base (HxWxD) [mm]||201 x 435 x 312|
